Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor

Brand Name : Mindray

Model Number : IPM10

MOQ : 1 Piece

Price : USD

Payment Terms : T/T,Western Union,Paypal

Delivery Time : 3-5 working days

Packaging Details : Carton

Product Name : Iron Frame of the includes a three-pronged power interface assembly Metal Frame

Material : Metal

Input power : AC 100-240V

Operating temperature : -20℃~60℃

Storage temperature : -10℃~50℃

Plug and unplug life : ≥ 1000 times

Warranty : 3 months

Weight : About 1.8KG

Size : 320mm×240mm×110mm

More details : Contact us

Contact Now

Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor

Mindray IPM10 monitor's iron frame serves as its structural support and power connection hub. It consists of a sturdy, one-piece steel plate and a three-pin power connector assembly. The iron frame secures and supports internal components, while the three-pin power connector assembly serves as the key node for external AC power input. Their integrated design fully meets the stringent structural stability and electrical safety requirements of medical equipment, ensuring the monitor's dual core functionality of physical stability and secure power input.

Product Specifications
Type Iron Frame of the includes a three-pronged power interface assembly
Application Machine Mindray IPM10
Material Metal
Input power AC 100-240V
Ground resistance ≤ 0.1Ω
Operating temperature -20℃~60℃
Storage temperature -10℃~50℃
Plug and unplug life ≥ 1000 times
Size 320mm*240mm*110mm
Weight 1.8kg
Core Functions

  1. Fixation and Support

    The iron frame serves as the monitor's "skeleton," providing a stable mounting base for all core components and securing key components, preventing vibration during device movement that could loosen connections between the motherboard and other modules. It also mitigates external shock, impact, and collisions, minimizing damage to internal components.

  2. Power Safety Hub

    The three-pin power connector assembly is the monitor's sole connection to the external AC power supply, accepting a wide voltage range of AC 100-240V (50/60Hz), adapting to different regions.

  3. Electromagnetic Shielding: Enhances the device's anti-interference capabilities.

    The steel plate material of the iron frame provides excellent electromagnetic shielding properties, forming a "double shield" with the device casing to prevent radiation from interfering with signal transmission within the internal circuitry. This ensures stable operation of the monitor in high-interference environments such as operating rooms, without data drift or functional abnormalities.

  4. Assisted Device Heat Dissipation: The iron frame utilizes a combination of "structural heat conduction and ventilation" to aid heat dissipation, extending the device's service life and reducing maintenance costs.

Frequently Asked Questions
Q1: The device casing is leaking (slight numbness when touched). The measured leakage current is 0.3mA. What's the problem?
A1: It's most likely a ground fault. Check the grounding pin on the power plug and the outlet for proper grounding. If the plug or outlet is faulty, replace it and test again. If the plug or outlet is functioning properly, open the device casing and check whether the grounding terminal connecting the interface assembly to the iron frame is loose or oxidized. Resolder or replace the grounding wire. If leakage persists despite proper grounding, it may be due to insulation failure in the power module. Replace the power module to prevent increased leakage current.
Q2: Is there any after-sales service guarantee for this accessory? What should I do if there are any quality issues?
A2: All our products are tested and approved by professional engineers before shipping. If you discover any quality issues, please take photos and videos and contact our staff immediately for resolution. All our products come with a minimum three-month warranty.
Q3: What other products do you offer? Can I purchase other products from you together?

A3:Our company specilized in patient monitors, defibrillation, ultrasound tranducers, ECG machies, anesthesia, etc, machines and their accessories.

This is our website: https://www.patients-monitor.com/

If you have any other needs, please contact me freely.

Product Images

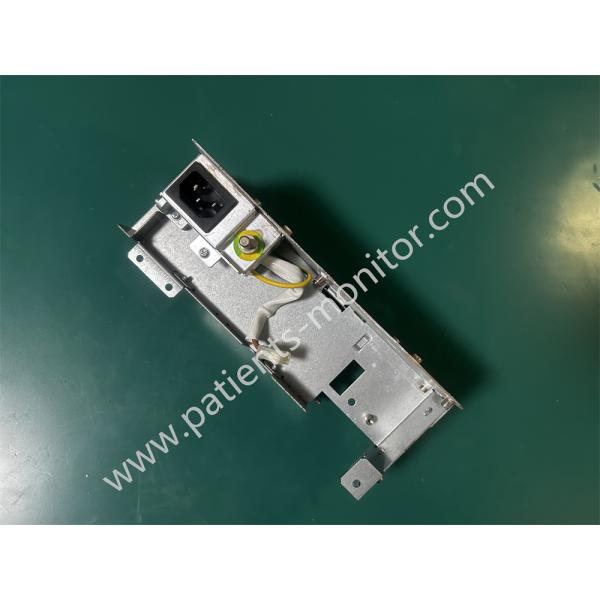

Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor
Mindray IPM10 monitor Iron Frame of the includes a three-pronged power interface assembly Metal Frame for Monitor
