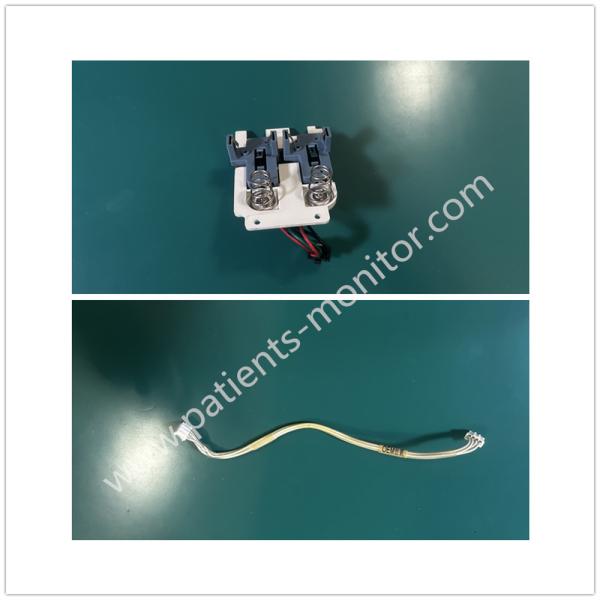

Mindray IPM-9800 Battery Interface 9211-20-87278 with SPO2 Board 35mm×20mm×12mm

This component is the core electrical connection part of the Mindray IPM-9800 patient monitor, consisting of a battery interface and dedicated wiring for the SpO₂ board and power management board. These two components work together to achieve "battery-powered transmission" and "core module signal communication." Its material selection and structural design fully meet the high reliability and safety requirements of medical equipment.

1. Power Transmission and Status Monitoring

   This battery interface transmits the battery's DC voltage to the power management board, ensuring stable operation of the device without an external power source. The interface also features terminals for "charging detection," "temperature monitoring," and "power communication," enabling real-time data collection of battery charging current, cell temperature, remaining charge, and other data, making it easier for medical personnel to understand the device's operating status.

2. Signal Intercommunication Hub

   This accessory connects the blood oxygen sensor board and the power management board, transmitting blood oxygen signals and distributing power.

3. Device Safety

   The battery interface's material and design prevent accidental short circuits between the positive and negative terminals, preventing high-temperature sparks. The low-smoke, zero-halogen insulation layer on the wiring does not release toxic gases in the event of a short circuit, meeting the requirements of medical equipment.

4. Easy Installation and Maintenance

   The battery interface and wiring utilize a modular structure, allowing replacement without disassembly of the device. The entire replacement process takes approximately 10 minutes, minimizing device downtime.
